BM120-4KS 12.5 inch carry on 4K broadcast director monitor with suitcase

Category: LILLIPUT
Price $740

15 June 2024

View 495 View

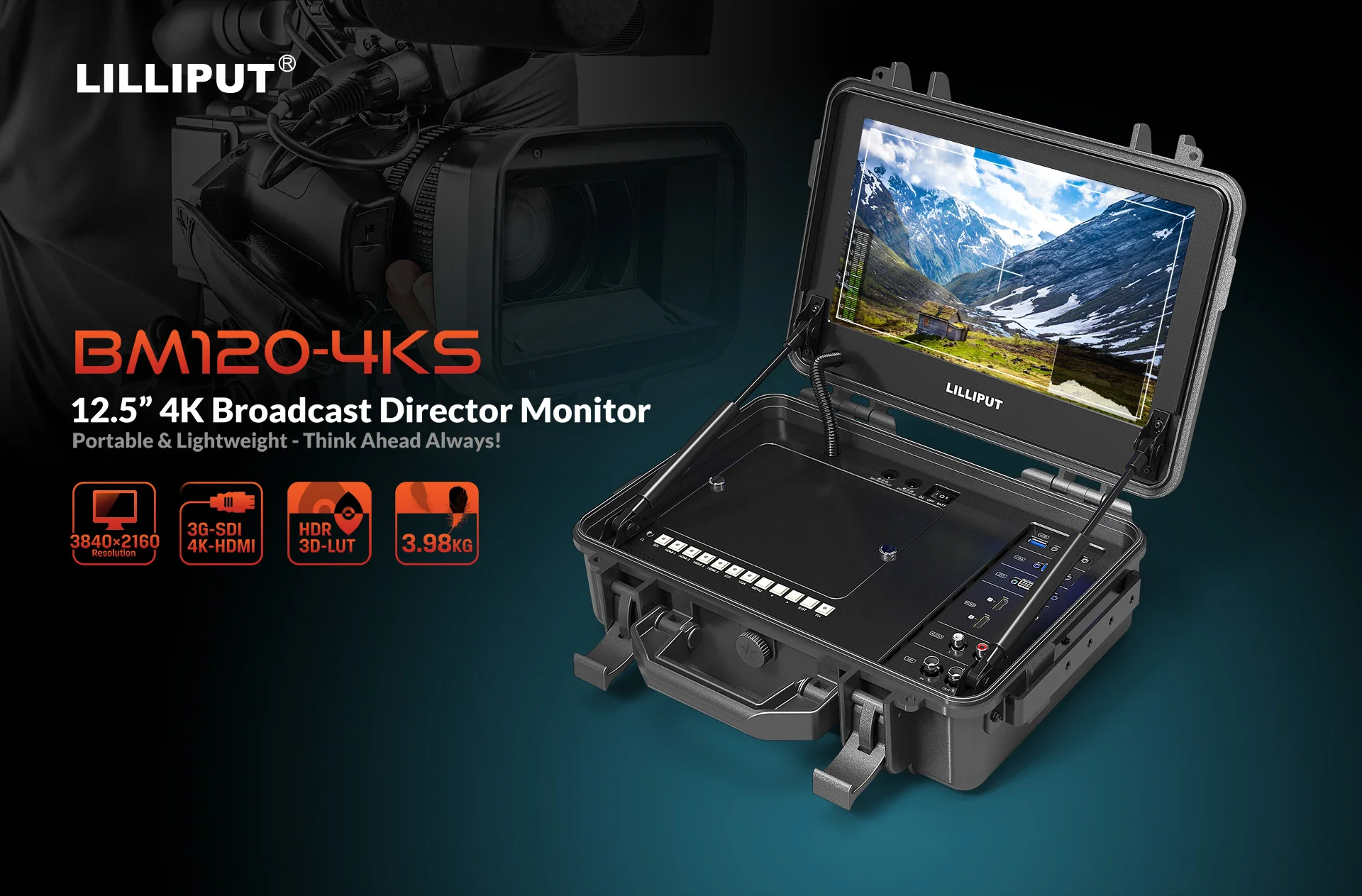

BM120-4KS 12.5 inch carry on 4K broadcast director monitor with suitcase

Short Description:

BM120-4KS is a 12.5″ 4K resolution monitor with 3840 x 2160 native resolution. It features two HDMI 2.0 inputs that support 4K HDMI 60Hz, and it also has two HDMI 1.4b as well as a 3G-SDI, VGA, and DVI input. The monitor features a single 3G-SDI output.. It supports SDR, HDR 10,3D-LUT, peaking, false, histogram,etc.

It is built into a hard protective carry on flight case which is just about 4KG. The LCD monitor is mounted on the lid, while the inputs, outputs, power connectors, and control buttons, V mount battery plates reside in the bottom, allowing you to connect your monitor without having to access the back of the monitor. An external rail with 1.4″-20 threaded holes along the side of the case is ideal for mounting wireless devices that can be powered by the 8 VDC output from monitor, It is designed for the professional video and film industry and is ideally suited for directors and camera operators operating 4K capable equipment or can be used by camera crews to shoot outdoors in the field.

Portable Suitcase Monitor with 4K Resolution, 97% NTSC color space.Application for taking photos & making movies.

Excellent Color Space

Creatively integrated the 3840×2160 native resolution into a 12.5 inch 8 bit LCD panel, which is far beyond from retina identification. Cover 97% NTSC color space, accurately reflect the original colors of an A+ level screen.

Quad Views Display

It supports quad views splitted from different input signals simultaneously, such as 3G-SDI, HDMI and VGA. Also supports Picture-in-Picture function.


4K HDMI supports up to 4096×2160 60p and 3840×2160 60p; SDI supports 3G-SDI signal.

3G-SDI signal can loop output to the other monitor or device when 3G-SDI signal input to monitor.

Support External Wireless Transmitter

Supports SDI / HDMI wireless transmitter which can transmit 1080p SDI / 4K HDMI signals in real time. When in use, the module can be mounted on the side brackets (compatible with 1/4 inch slots) of the case.


When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearly. Effectively enhancing the overall picture quality. Support HDR 10.


Wider color gamut range to make precise color reproduction of Rec.709 color space with built-in 3D-LUT, featuring 3 user logs.

(Supports loading the .cube file via USB flash disk.)

Camera Auxiliary Functions

Povides plenty of auxiliary functions for taking photos and making movies, such as peaking, false color and audio level meter.

Outdoor Power Supply

The V-mount battery plate is embedded in the suitcase and can be powered by a 14.8V lithium V-mount battery. Provides extra power when shooting outdoors in the field.

V-mount Battery

Compatible with mini V-mount battery brands on the market. A 135Wh battery will keep the monitor working for 7 - 8 hours.The length and width of the battery should not exceed 120mm×91mm.

Portable Flight Case

Military-industrial Level! Integrated PPS high-strength material, featuring with dustproof, waterproof, high-temperature resistance, impact resistance and corrosion resistance.

The lightweight design makes outdoor photography easy and convenient. It is sized to meet boarding requirements that can be taken into cabin.
